Line Grid (3-D)

Drawing > Others > Extras > 3-D Grid

Grids are an important construction aid for 3-D design.

The properties of a 3-D line grid:

The grid line can have different distances in x- and y-direction. Different distances between 2 grid lines of one direction are also possible.
The grid can be placed anywhere in the drawing.
The intersection points of the grid lines are isolated points. You can access these points with the point option J.
3-D grids can contain of several layers (planes).

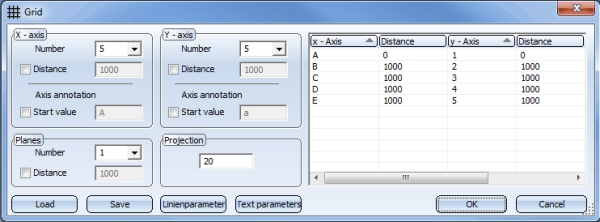

The Grid dialogue window is displayed to enable you to configure steel engineering grids.

Options and Buttons
Number	Number of grid lines in x-/y-direction
Distance	For even axis distances, enter the distance between the axes in the Distance field. If you want the distances between the axes to be uneven, you can enter the values directly into the table on the right-hand side of the window.
Axis annotation	You can specify the start value for consecutive axis annotation here. If you do not want the annotation to be consecutive, you can also enter the axis annotation directly into the table on the right-hand side of the window.
Planes	3-D grids can consist of several planes. Specify the number of planes and the distance between each of the planes.
Projection	This value determines how far the grid lines will project beyond the border of the grid.
Line parameters	Click this button to specify the parameters for the grid lines. The Edge parameters for 3-D grid dialogue window will be displayed, enabling you to select the colour, line type and layer of the grid lines.
Text parameters	Click this button to specify the text parameters for the axis annotation. The Text parameters dialogue will be displayed, enabling you to select the colour, layer size, font etc. of the axis annotations.
Save	Click this button to save the current grid settings. The data is saved in the HiCAD subdirectory Makro 3-D/Raster under the specified name with the extension .RST. The RST files can be reused at any time – even for other steel engineering constructions.
Load	Click this button to load a saved 3-D grid (.RST).

If you have made the desired grid settings, choose OK to exit the window. HiCAD displays a preview of the grid.

To position the grid exactly:

Choose a fitting point on the grid.
Specify the position of this point in your drawing. If you want to place the grid in the origin of the coordinate system, press the right mouse button twice.

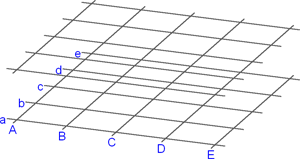

3-D grid with 2 planes

Please note:

The grid is inserted into the 3-D part structure as a main part (Type = dummy part) called Grid. For each level of the grid, a sub-part named Grid (Type=part with free edges) is assigned to the main part.
The isolated points for the grid line intersections are only displayed and can only be identified if the representation of isolated points has been activated. You can access this function via Drawing > Visualisation > Hide/Show, Via element type . Here, the Isolated points checkbox needs to be active.
A drawing can contain several grids.
If you want to apply changes to a grid, e.g. if you want to move it, right-click the grid and select the appropriate function in the context menu. To change the grid settings, select the Change parameters function.
On the Steel Engineering tab, select Further functions > Settings > Grid annotations to annotate the grid axes individually. In addition, you can apply the 3-D dimensioning functions to grids if desired.
