Sketch Functions (3-D)

Sketch

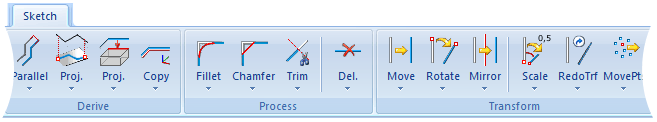

The functions for Sketches and 3-D Sketches can be found on the Sketch tab:

The tab consists of the following function groups.

Function groups
New	Creation of new sketches and 3-D sketches; placing of sketch planes, insertion of isolated points.
Draw	Insertion of polylines, polygons, circles, arcs, ellipses, curves; setting of parameters.
Derive	Insertion of parallels, projections onto surfaces or planes, approximation of sketch elements, taking over of sketch elements from other parts.
Process	Filleting and chamfering of sketches, changing of edges/lines of sketches, deleting of individual sketch elements
Transform	Transforming of sketch elements.
Clone	Copying of sketch elements.
Tools	Further function for the creation and processing of sketch elements and for the definition of sketch elements as auxiliary geometries.
HCM	Insertion of parallels, projections onto surfaces or planes, approximation of sketch elements, copying of sketch elements from other parts

Please note that not all functions of the tab are available for sketches and 3-D sketches. The unavailable functions are greyed out, depending on whether a sketch or a 3.-D sketch is active.
