Change Scale of View (3-D)

Views > Properties > Scale

You use this function to change the scale of the active view. Proceed as follows:

1. Choose the new scale for the view.
2. Determine the fixed point of the view for the change of scale.

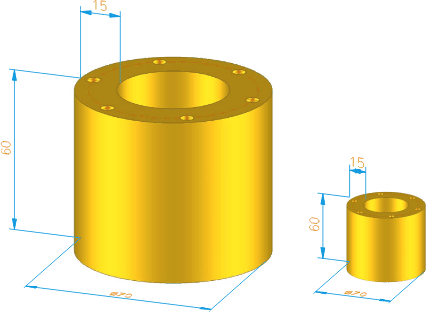

The graphic shows the start view (left) and the view after the change of scale (right) to 1:2.5.

Texts and dimensionings are not scaled when you use this function. For dimension lines, however, HiCAD offers several adjustment options for dimension lines when changing drawing scales.
