Standard Part Designation Tag (3-D)

3-D Dimensioning + Text > Text > Standard designation

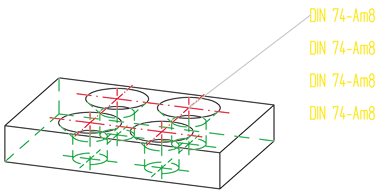

You use this function to assign an annotation to standard parts and standard processings. It uses the current settings for standard part annotations which you define in the context menu for standard part designations - regardless of the settings for other annotations.

1. Identify an edge of the standard part or the standard processing.
2. Define the start point of the leader line.
3. Define the inflexion points and the end point.
4. Right-click to conclude specification of the leader line, and the annotation is created.
