Take surface
3-D Standard > Tools > Surface > Surfaces, Further... >
Take surface
You use this function to assign surfaces of one part to another part.
First identify the target part.
This part must not be a solid.
Then, by identifying two edges in each case, specify the surfaces that you want to be assigned to the target part. Use END to end the identification (right mouse button).
The selected surfaces are deleted from the parts to which they previously belonged and assigned to the target part.

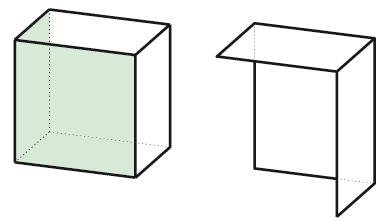

Left: Original part with selected surfaces; Right: Target part

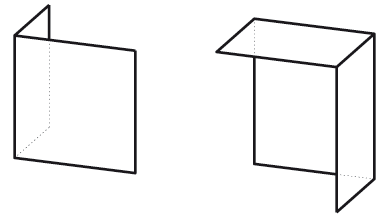

Target part after execution of the function
Original part after execution of the function
