Hatch Surfaces (3-D)

3-D Standard > Tools > Surface > Surfaces, Further...> Hatch

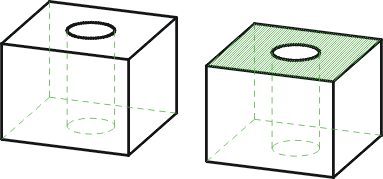

The Hatch function allows you to hatch surfaces of the active part.

1. Choose the hatching type by clicking one of the preview images HiCAD hatching or User-defined hatching .
2. Choose the hatching colour.
3. Enter the hatching angle and spacing.
4. Click the Hatch button to exit the selection window.
5. Specify the surface to be hatched.
6. Use END (right mouse button) to end the function.

To delete the hatching of a surface, choose the Delete function.
