Trim to Surface (3-D)

3-D Standard > Process > Trim to surface

The active part is trimmed to one surface.

1. Specify the part to be trimmed by identifying an edge, namely on the side to be trimmed.
2. Define the trim surface by identifying two edges.

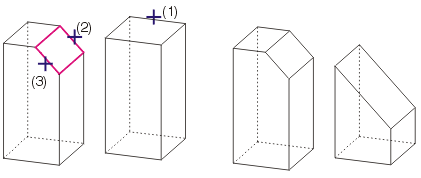

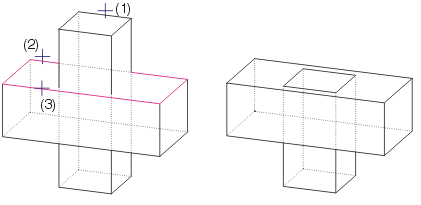

Left: (1) Active block to be trimmed, (2) and (3) Edges of the surface to be trimmed
Right: Result
