Redo/Undo Sketch Transformation (3-D)

Sketch > Transform > RedoTrf...

Use this function to apply the last transformation of the active sketch to another graphical element of the sketch. Identify the desired element.

Clicking opens a menu with further functions:

	Repeat last transformation, Polyline Applies the last transformation of the active sketch to a complete polyline of the sketch.
	Repeat last transformation, Sketch Repeats the last transformation of the active sketch and applies it to the entire sketch.
	Last transformation back, Individual Reverts the last transformation of the active sketch and applies it to a graphical element of the active sketch. Please note: If the identified graphical element is the previously transformed element, the function will correspond to an UNDO action.
	Last transformation back, Polyline Reverts the last transformation and applies it to a polyline of the active sketch.

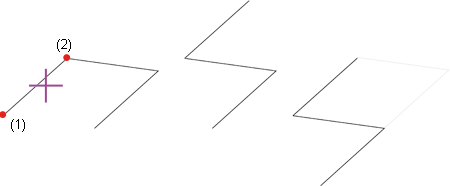

	Last transformation back, Sketch Reverts the last transformation and applies it to the active sketch. Example In the left sketch the marked edge was moved (start point (1), end point (2)). The middle image shows the result. If the Last transformation back function is then applied to the active sketch, the previously moved edge is reset to the original position; at the same time, the other sketch elements are also transformed accordingly. The result can be seen in the right image.
