Project Graphical Elements (3-D)

Use these functions to project individual graphical elements as well as entire composite edges onto the active sketch.

Project GE, Individual

Sketch > Derive > Proj. > Project GE, Individual

Use this function to project individual or all edges of a 3-D composite edge onto the active sketch.

Identify the 3-D edges you want to project onto the sketch. The identified edges are immediately projected onto the corresponding plane. Right-click to end the edge selection.

Project GE, C-edge

Sketch > Derive > Proj. > Project GE, C-edge

Use this function to project all edges of a 3-D composite edge onto the active sketch.

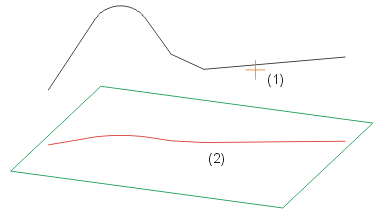

Example
