View > Process, Shorten
This function enables you to shorten views - even several times and in different directions - and to delete and copy shortened views. For this, the Shortened view dialogue window is displayed. It contains the following options:
Deletes all shortenings of the active view and displays them again in non-shortened format.
Copies shortenings of an existing view to the active view.
Displays the number of the current shortening direction.
Removes all areas of the current shortening direction.
Defines a new shortening direction. HiCAD automatically numbers directions of shortening consecutively, displaying the number of the current direction in the Plane field.
Enables you to specify a point which will retain its original position when the shortened view is calculated.
Removes individual areas of the current shortening direction.
The so-called view limitation is a special type of the view shortening. Here, the areas outside a specified rectangle are hidden. To apply the view limitation, draw the required rectangle.
Displays a preview of the shortened view.

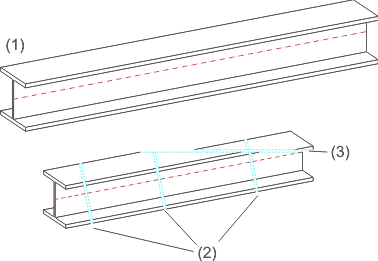

(1) Original view of a steel engineering beam, (2) First shortening with three sub-areas, (3) Second shortening

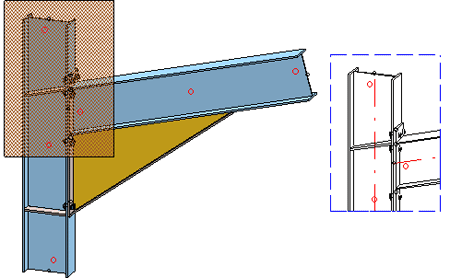

Example of a view limitation
