Show/Hide Edges (3-D)

Views > Properties > Show/Hide edges in view

Especially when displaying polyhedrons and freeform surfaces, certain edges that conflict with the rules of technical drawing need to be hidden. Edges are therefore assigned an internal ID, which identifies them as a normal or tangential edge, mesh edge in n-direction, m-direction, mesh diagonal or polyhedral lateral edge. n and m here are the natural parameter directions of a surface, e.g. latitude and longitude of a sphere. Furthermore, edges can also be hidden using the limiting angle or by means of individual identification. The various options are made available in a window. ID, limiting angle and edge identification are treated equally (OR link).

Show Edge representation
Hide edges
Sectional view

Clicking opens a menu with further edge representation functions:

	Hidden edges	Defines colour and line type of hidden edges.
	Highlighted edges	Highlights edges in colour in glass models or in hidden line representation.
	Shading type	Defines the lighting model and the edge shading method.

Show edges

To be able to hide specific edges, you need to know which Edge ID exists or can exist in which part type:

Polyhedral Lateral Edges	Cylinder, cone (as polyhedral model) Fillets (depending on generation)
Mesh in n-Direction Mesh in m-Direction	Sphere, torus: latitude (n-direction), longitude (m-direction) 3-D revolved part, cross-section (m-direction), lines between cross-sections (n-direction) Fillets (depending on generation)
Tangential Edges	Edges the adjacent surfaces of which form an angle of 0 degrees.
Free Edges	Edges that do not attach to a surface and are not part of a composite edge. Free edges can, for example, represent a symmetry axis in solid bodies. Thread edges are treated like free edges.
Hatchings	If you do not want hatchings to be displayed, deactivate this option. This setting applies to both 3-D surface hatchings and hatchings of sectional views, details und cut-outs. If the option is active, you can hide hatchings that would not normally be visible. Such cases can, for example, occur with sectional views.
Co-Linear Sheet Edges	Sheet development, flanges etc.
Steel Engineering Axes, Marking Lines, Beam Elements	Steel engineering sections, bar elements etc.

Examples:

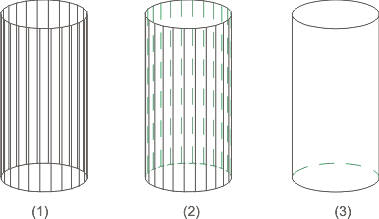

Lateral Edges

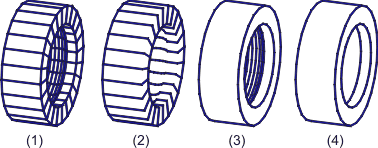

Various Edges

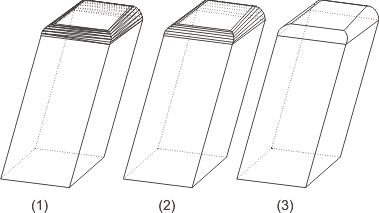

Utilising the Edge ID

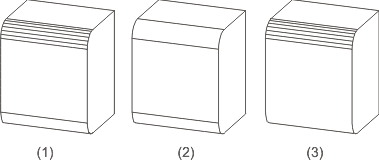

Mesh Edges for Fillets

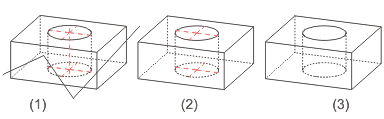

Free Edges, Centre Lines and Crosshairs

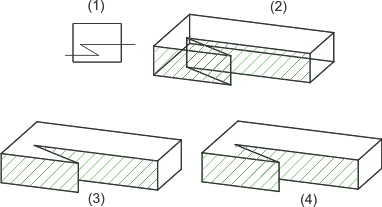

Hatching of a Sectional View

Hide edges

Hide individual edges

Here, you can change the display of individual edges in your drawing. To do this, activate the checkbox, then click the Select edges button and identify the edges you want. You should only use this option if the other functions do not produce the required result!

If you choose Cancel selection for active part,you undo the changes to the display of the identified edges of the active part; if you choose Cancel selection for all parts, you undo the changes to the display of all identified edges

Hide via limiting angle

You can specify a so-called limiting angle if you want to hide edges between two planar surfaces forming a particular angle. If, for example, you entered a value of 30 degrees, all edges between two flat surfaces (curved surfaces are not taken into account) which form an angle of <30 degrees to one another would be hidden.

You can set limiting angles either for the active part or for all parts of an active view, by clicking the corresponding button.

To show/hide special edges such as centre lines, steel engineering section axes etc., you can pre-set the system file ANSGEN.DAT accordingly.

Sectional view

This area of the dialogue window is only active if the active view is a sectional view, a detail view or a cut-out. In these cases you have the option to hide the edges between the cut planes. Activate the appropriate checkbox for this.
