Edge Functions (3-D)

3-D Standard > Tools > Edge

The following options are available to process edges of a 3-D part:

• Move edges
• Insert free edges

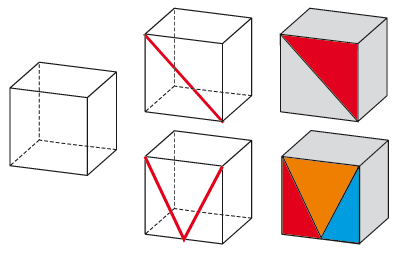

• Divide surfaces by insertion of edges
• Divide edges into several segments
• Merge edges

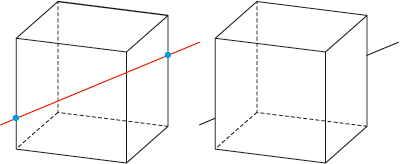

• Trim edges
• Delete edges
• Change edge parameters

The Move edge, 2 points (direct) is preset. Clicking opens a menu with further functions.
