Angle Dimensioning, Individual Dimensions (2-D)

2-D Dimensioning + Text > Angle > Individual dimension, via lines

2-D Dimensioning + Text > Angle > Individual dimension > Individual dimension, via points

This function enables you to generate individual dimensions for an angle.

1. Depending on identification type (using points or lines), select two sides or four points that define the sides.
2. Define the direction of the dimensioning by entering a further point.

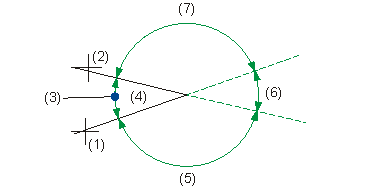

(1) First side
(2) Second side
(3) Direction of the dimensioning

In the case of an angle < 180°, you can dimension the angle (4) formed by the 2 sides as well as the corresponding vertex angle (6) and the two auxiliary angles (5) and (7).
