Create Freeform Surface Offsets (3-D FFS)

3-D FFS > From surface > Offset

This function enables you to create offsets of freeform surfaces.

1. Identify the required surface by selecting two edges.
2. Select further surfaces or end the surface selection with END (RMB).
3. Enter the wall thickness.
4. Specify whether you want to create an internal or external offset.

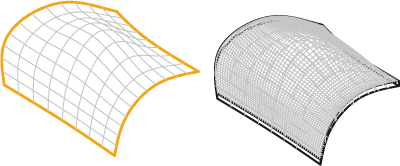

Original surface and offset

Shaded offset
