Connect 3-D Curve to 3-D Point (3-D FFS)

3-D FFS > Via connection > Connect 3-D curve to 3-D point

Use this function to create a freeform surface by connecting a curve with an individual point.

1. Identify the boundary curve.
2. Determine the apex via specification of a point.

The resulting freeform surface is a surface of the NURB type.

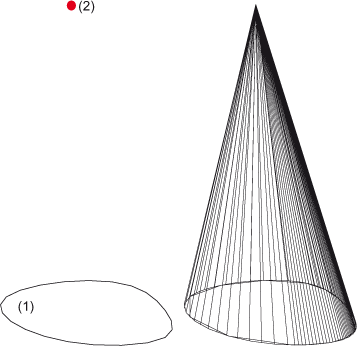

Connection of a curve with a point
