Lengthen Untrimmed FFS (3-D FFS)

3-D FFS > Process > Lengthen untrimmed surface

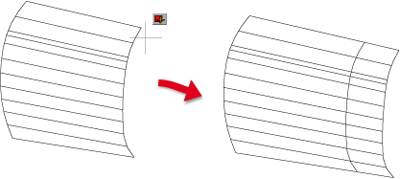

Use this function to lengthen non-intersecting freeform surfaces.

1. Identify the freeform surface.
2. Determine the borders to be lengthened.
3. End the border selection with a right-click.
4. Specify the lengthening in percent.

Clicking opens a pull-down menu with functions for the processing of Surface sets. These are unioned groups of surfaces that touch each other at their edges.
